An abstract class that manages the basic events, like mouse clicks or scrolls events. More...

#include <IntelliTool.h>

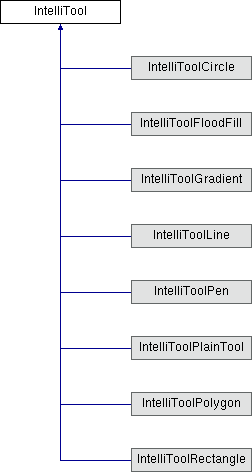

Inheritance diagram for IntelliTool:

Public Types
enum	Tooltype { Tooltype::CIRCLE, Tooltype::FLOODFILL, Tooltype::GRADIENT, Tooltype::LINE, Tooltype::PEN, Tooltype::PLAIN, Tooltype::POLYGON, Tooltype::RECTANGLE, Tooltype::NONE }
	The Tooltype enum categorising the toosl. More...

Public Member Functions
	IntelliTool (PaintingArea Area, IntelliColorPicker colorPicker, IntelliToolsettings *Toolsettings)
	A constructor setting the general Painting Area and colorPicker. More...

virtual	~IntelliTool ()=0
	An abstract Destructor. More...

virtual void	onMouseRightPressed (int x, int y)
	A function managing the right click Pressed of a Mouse. Constructing the Canvas to draw on. Call this in child classes! More...

virtual void	onMouseRightReleased (int x, int y)
	A function managing the right click Released of a Mouse. Merging the Canvas to Active. Call this in child classes! More...

virtual void	onMouseLeftPressed (int x, int y)
	A function managing the left click Pressed of a Mouse. Resetting the current draw. Call this in child classes! More...

virtual void	onMouseLeftReleased (int x, int y)
	A function managing the left click Released of a Mouse. Call this in child classes! More...

virtual void	onWheelScrolled (int value)
	A function managing the scroll event. A positive value means scrolling outwards. Call this in child classes! More...

virtual void	onMouseMoved (int x, int y)
	A function managing the mouse moved event. Call this in child classes! More...

Tooltype	getTooltype () const
	getTooltype returns the tools type More...

bool	getIsDrawing () const
	getIsDrawing returns if the tool is currently drawing More...

Protected Attributes
PaintingArea *	Area
	A pointer to the general PaintingArea to interact with. More...

Tooltype	ActiveType
	ActiveType the type of the active tool. More...

IntelliColorPicker *	colorPicker
	A pointer to the IntelliColorPicker of the PaintingArea to interact with, and get the colors. More...

IntelliToolsettings *	Toolsettings
	Toolsettings a refrence to the tool settings. More...

LayerObject *	activeLayer
	A pointer to the underlying active Layer, do not work on this. This is used for data grabbing or previews. More...

LayerObject *	Canvas
	A pointer to the drawing canvas of the tool, work on this. More...

bool	isDrawing = false
	A flag checking if the user is currently drawing or not. More...

Detailed Description

An abstract class that manages the basic events, like mouse clicks or scrolls events.

Definition at line 17 of file IntelliTool.h.

Member Enumeration Documentation

◆ Tooltype

enum IntelliTool::Tooltype

strong

The Tooltype enum categorising the toosl.

Enumerator
CIRCLE
FLOODFILL
GRADIENT
LINE
PEN
PLAIN
POLYGON
RECTANGLE
NONE

Definition at line 23 of file IntelliTool.h.

Constructor & Destructor Documentation

◆ IntelliTool()

IntelliTool::IntelliTool	(	PaintingArea *	Area,
		IntelliColorPicker *	colorPicker,
		IntelliToolsettings *	Toolsettings
	)

A constructor setting the general Painting Area and colorPicker.

Parameters

Area	- The general PaintingArea used by the project.
colorPicker	- The general colorPicker used by the project.

Definition at line 5 of file IntelliTool.cpp.

◆ ~IntelliTool()

IntelliTool::~IntelliTool ( )

pure virtual

An abstract Destructor.

Definition at line 15 of file IntelliTool.cpp.

Member Function Documentation

◆ getIsDrawing()

bool IntelliTool::getIsDrawing ( ) const

getIsDrawing returns if the tool is currently drawing

Returns: returns if the tool is currently drawing

Definition at line 105 of file IntelliTool.cpp.

◆ getTooltype()

IntelliTool::Tooltype IntelliTool::getTooltype ( ) const

getTooltype returns the tools type

Returns: returns the tool type of the current tool.

Definition at line 101 of file IntelliTool.cpp.

◆ onMouseLeftPressed()

void IntelliTool::onMouseLeftPressed	(	int	x,
		int	y
	)

virtual

A function managing the left click Pressed of a Mouse. Resetting the current draw. Call this in child classes!

Parameters

x	- The x coordinate relative to the active/canvas layer.
y	- The y coordinate relative to the active/canvas layer.

Reimplemented in IntelliToolPolygon, IntelliToolCircle, IntelliToolRectangle, IntelliToolLine, IntelliToolPen, IntelliToolFloodFill, IntelliToolPlainTool, and IntelliToolGradient.

Definition at line 30 of file IntelliTool.cpp.

◆ onMouseLeftReleased()

void IntelliTool::onMouseLeftReleased	(	int	x,
		int	y
	)

virtual

A function managing the left click Released of a Mouse. Call this in child classes!

Parameters

x	- The x coordinate relative to the active/canvas layer.
y	- The y coordinate relative to the active/canvas layer.

Reimplemented in IntelliToolPolygon, IntelliToolCircle, IntelliToolRectangle, IntelliToolLine, IntelliToolPen, IntelliToolFloodFill, IntelliToolPlainTool, and IntelliToolGradient.

Definition at line 37 of file IntelliTool.cpp.

◆ onMouseMoved()

void IntelliTool::onMouseMoved	(	int	x,
		int	y
	)

virtual

A function managing the mouse moved event. Call this in child classes!

Parameters

x	- The x coordinate of the new mouse position.
y	- The y coordinate of the new mouse position.

Reimplemented in IntelliToolPolygon, IntelliToolCircle, IntelliToolRectangle, IntelliToolLine, IntelliToolPen, IntelliToolFloodFill, IntelliToolPlainTool, and IntelliToolGradient.

Definition at line 48 of file IntelliTool.cpp.

◆ onMouseRightPressed()

void IntelliTool::onMouseRightPressed	(	int	x,
		int	y
	)

virtual

A function managing the right click Pressed of a Mouse. Constructing the Canvas to draw on. Call this in child classes!

Parameters

x	- The x coordinate relative to the active/canvas layer.
y	- The y coordinate relative to the active/canvas layer.

Reimplemented in IntelliToolPolygon, IntelliToolCircle, IntelliToolRectangle, IntelliToolLine, IntelliToolPen, IntelliToolFloodFill, IntelliToolPlainTool, and IntelliToolGradient.

Definition at line 19 of file IntelliTool.cpp.

◆ onMouseRightReleased()

void IntelliTool::onMouseRightReleased	(	int	x,
		int	y
	)

virtual

A function managing the right click Released of a Mouse. Merging the Canvas to Active. Call this in child classes!

Parameters

x	- The x coordinate relative to the active/canvas layer.
y	- The y coordinate relative to the active/canvas layer.

Reimplemented in IntelliToolPolygon, IntelliToolCircle, IntelliToolRectangle, IntelliToolLine, IntelliToolPen, IntelliToolFloodFill, IntelliToolPlainTool, and IntelliToolGradient.

Definition at line 26 of file IntelliTool.cpp.

◆ onWheelScrolled()

void IntelliTool::onWheelScrolled ( int value )

virtual

A function managing the scroll event. A positive value means scrolling outwards. Call this in child classes!

Parameters

value - The absolute the scroll has changed.

Reimplemented in IntelliToolPolygon, IntelliToolCircle, IntelliToolRectangle, IntelliToolLine, IntelliToolPen, IntelliToolFloodFill, IntelliToolPlainTool, and IntelliToolGradient.

Definition at line 53 of file IntelliTool.cpp.

Member Data Documentation

◆ activeLayer

LayerObject* IntelliTool::activeLayer

protected

A pointer to the underlying active Layer, do not work on this. This is used for data grabbing or previews.

Definition at line 74 of file IntelliTool.h.

◆ ActiveType

Tooltype IntelliTool::ActiveType

protected

ActiveType the type of the active tool.

Definition at line 59 of file IntelliTool.h.

◆ Area

PaintingArea* IntelliTool::Area

protected

A pointer to the general PaintingArea to interact with.

Definition at line 54 of file IntelliTool.h.

◆ Canvas

LayerObject* IntelliTool::Canvas

protected

A pointer to the drawing canvas of the tool, work on this.

Definition at line 79 of file IntelliTool.h.

◆ colorPicker

IntelliColorPicker* IntelliTool::colorPicker

protected

A pointer to the IntelliColorPicker of the PaintingArea to interact with, and get the colors.

Definition at line 64 of file IntelliTool.h.

◆ isDrawing

bool IntelliTool::isDrawing = false

protected

A flag checking if the user is currently drawing or not.

Definition at line 84 of file IntelliTool.h.

◆ Toolsettings

IntelliToolsettings* IntelliTool::Toolsettings

protected

Toolsettings a refrence to the tool settings.

Definition at line 69 of file IntelliTool.h.

The documentation for this class was generated from the following files:

src/Tool/IntelliTool.h
src/Tool/IntelliTool.cpp
